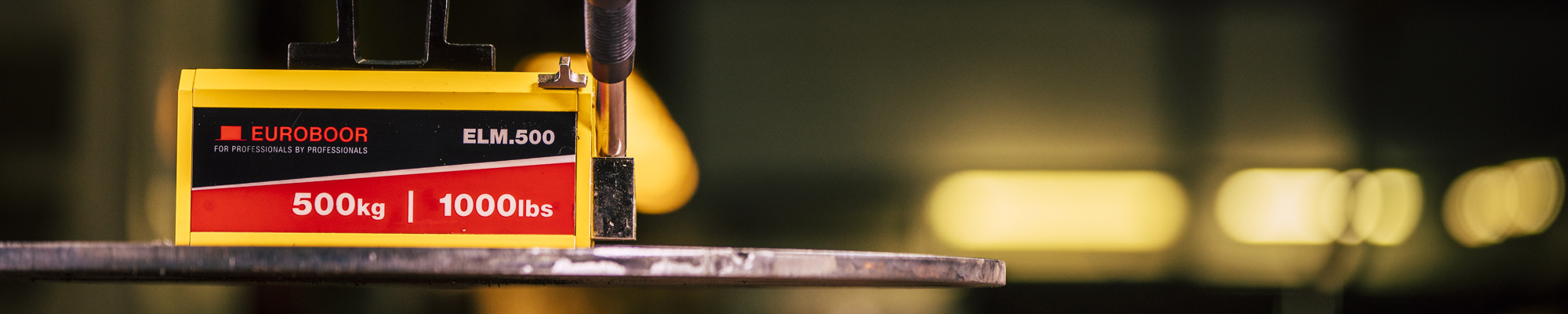

ELM.500
ELM.500
ELM.500
ELM.500

ELM.500

Lifting magnet, 500 kg.

Lifting magnet, lifting capacity flat 500 kilogram, lifting capacity round 250 kilogram.

EAN code8718858034345
Stock Directly available
Get a quote

Move your heavy work piece easily and quickly without damage with the Euroboor lifting tools. Our lifting equipment is suitable for flat and tubular objects with either rough or finished surfaces. Euroboor lifting tools are designed to withstand at least 3.5 times the recommended workload and each lifting magnet is individually tested and delivered with a specific certificate as proof of safety. Our lifting tools provide reliable and consistent performance, also under extreme conditions.


Contact us

Properties

Dimensions
length (inch)11 5/16
height (inch)7 11/16
width (inch)4 7/16
length (L2 / mm)288
width (mm)112
height (mm)195
inside / minimum diameter (inch)1 5/8
inside / minimum diameter (mm)42
Properties
tested lifting capacity (lbs)3527
tested lifting capacity (kilogram)1600
nett weight (lbs)42.4
nett weight (kilogram)21.2
system of measurementmm (metric)
applicationlifting
Usage
maximum pipe diameter (inch)9 27/32
maximum pipe diameter (mm)250
lifting capacity round material (lbs)500
lifting capacity round material (kilogram)250
lifting capacity flat material (lbs)1000
lifting capacity flat material (kilogram)500
minimum pipe diameter (inch)3 15/16
minimum pipe diameter (mm)100
minimum material thickness (inch)1 3/16
minimum material thickness (mm)30
maximum working temperature degrees Celsius (C)80
maximum working temperature degrees Fahrenheit (F)176
